SPECTRAL SMART

Controllable and Tunable Advanced PAR Spectrum LED Grow Lights




The Spectral Smart Model

"DemeGrow Spectral Smart series LED grow lights are designed with an optimized Effective PAR (EPAR™) recipe for vegetative and flowering modes. More importantly, they allow users the ability to define the recipe on wavelength intensity on each channel and timing for photoperiodic control."


-- Dr.Jin Peng
Technical Director and Principal, DemeGrow, Inc.



  • Produce the widest range of Effective Photosynthetic Active Radiation (EPAR™)
  • Provide the highest level of photons at each nanometer for healthy, hearty, plant growth and flowering

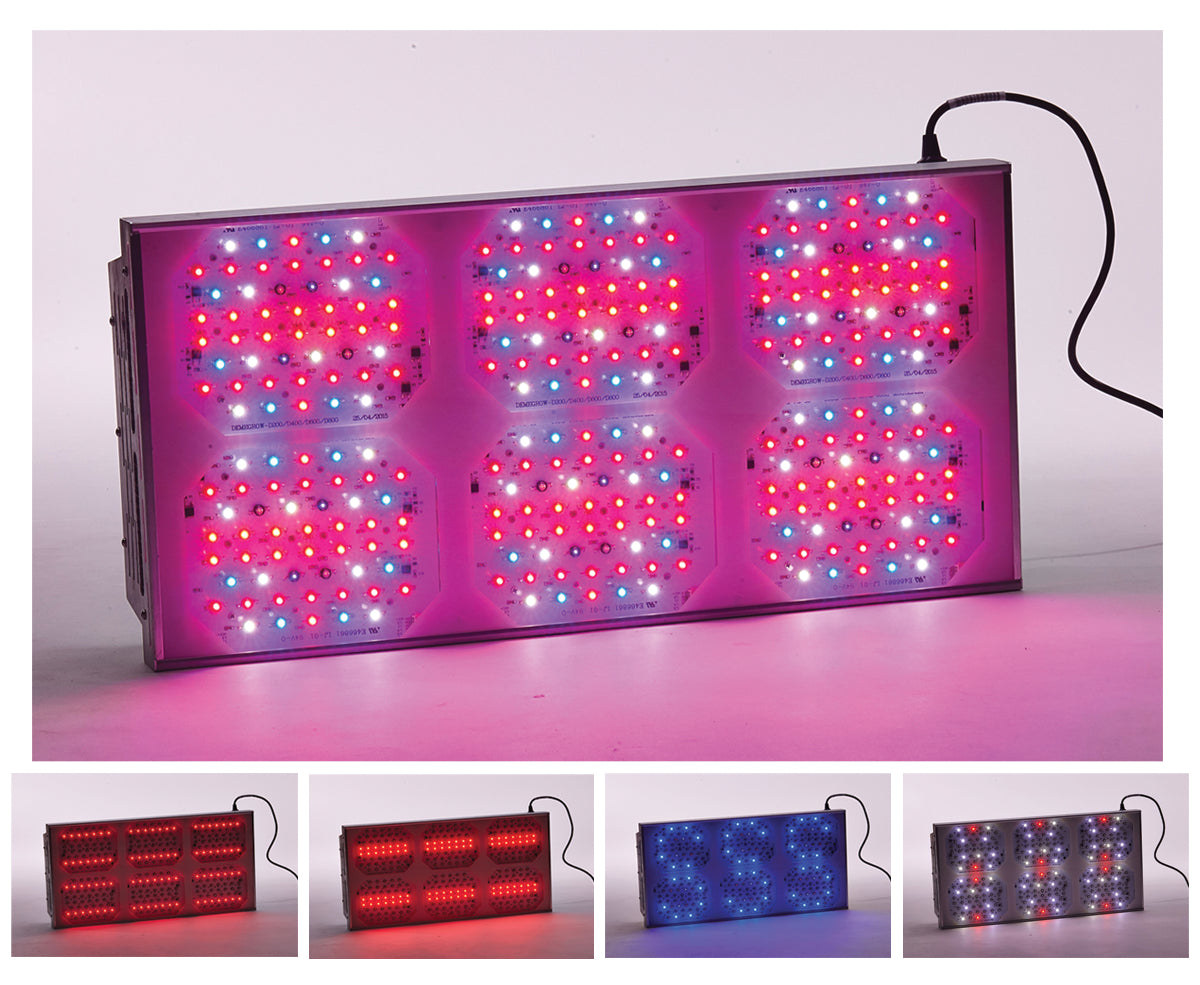

  • Light is distributed into 4 different channels that provide 11 different points on the PAR scale ranging from red, deep red, blue, white and the inclusion of blended Ultraviolet and Infrared bands of light
  • Controller provides preprogrammed and customizable settings for 4 LED channels, 6 modes (3 DIY), 8 set point scheduling times to control lighting type and quantity from each band, and the ability to introduce complete darkness for photoperiodic plant types
  • LED lights provide major reductions to energy use and heat over HID
  • Available in 4 sizes: DS200, DS400, DS600 and DS800 that can be utilized based on growing area and ceiling height to replace traditional HID lamps
  • Integrated, intelligent temperature controlled, quiet, variable speed fans provide increased thermal control for the system and extended product lifespan




Understanding PAR
Photosynthetic Active Radiation (PAR) is what’s measured when a wavelength from a light source reacts to a plant’s photosynthetic process.
Spectral Smart Spectrum



Spectral Smart LED Grow Lights utilize diodes that align precisely with the PAR wavelengths, making them scientifically formulated for maximum efficiency.


For plant growth, the first stage of photosynthesis is absorbing light by chlorophyll. Chlorophyll A & B and carotene are three major elements that affect plant growth. Science has shown that the ideal wavelengths for photosynthesis are Blue ray 400-500nm and Red ray 600-700nm, and that Blue ray and Red ray are the most efficient for plant growth.






SPECTRAL SMART MODELS



Spectral Smart D200

Spectral Smart DS200 : Switch Version
Spectral Smart DCA200 : Smart Controller Version-Wired
Spectral Smart DCW200 : Smart Controller Version-WiFi
LED Quantity: 100pcs 3w LED
Power Consumption: 200-250W
Input Voltage: AC110V or 240V
Driver: 350W MeanWell Driver
Housing Material: Anodized Aluminum Alloy
Lifespan: 50,000 hrs
Product Dimension: 10.5 x 12.6 x 4.3 inch
LED Chip Brand: Bridgelux/Epivalley/EPILED
Net Weight: 10 lb
Gross Weight: 14 lb

Spectral Smart D400

Spectral Smart DS400 : Switch Version
Spectral Smart DCA400 : Smart Controller Version-Wired
Spectral Smart DCW400 : Smart Controller Version-WiFi
LED Quantity: 200pcs 3w LED
Power Consumption: 380-410W
Input Voltage: AC110V or 240V
Driver: 450W MeanWell Driver
Housing Material: Anodized Aluminum Alloy
Lifespan: 50,000 hrs
Product Dimension: 17.7 x 12.6 x 4.3 inch
LED Chip Brand: Bridgelux/Epivalley/EPILED
Net Weight: 16.5 lb
Gross Weight: 22 lb

Spectral Smart D600

Spectral Smart DS600 : Switch Version
Spectral Smart DCA600 : Smart Controller Version-Wired
Spectral Smart DCW600 : Smart Controller Version-WiFi
LED Quantity: 300pcs 3w LED
Power Consumption: 580-620W
Input Voltage: AC110V or 240V
Driver: 700W MeanWell Driver
Housing Material: Anodized Aluminum Alloy
Lifespan: 50,000 hrs
Product Dimension: 25.6 x 12.6 x 4.3 inch
LED Chip Brand: Bridgelux/Epivalley/EPILED
Net Weight: 21 lb
Gross Weight: 31 lb

Spectral Smart D800

Spectral Smart DS800 : Switch Version
Spectral Smart DCA800 : Smart Controller Version-Wired
Spectral Smart DCW800 : Smart Controller Version-WiFi
LED Quantity: 400pcs 3w LED
Power Consumption: 800-850W
Input Voltage: AC110V or 240V
Driver: 2pcs 450W MeanWell Driver
Housing Material: Anodized Aluminum Alloy
Lifespan: 50,000 hrs
Product Dimension: 33.5 x 2.6 x 4.3 inch
LED Chip Brand: Bridgelux/Epivalley/EPILED
Net Weight: 28 lb
Gross Weight: 35 lb
